Shows a list of all Production order Routing lines. With this Page it is possible to see all Operations for any Production Order. You can select one specific machine or Work Center oder date. From the list you can Navigate to the related informations and use the Actions. Same actions are available on a worksheet as on Production Order Components subpage - when opened from Production Order card.

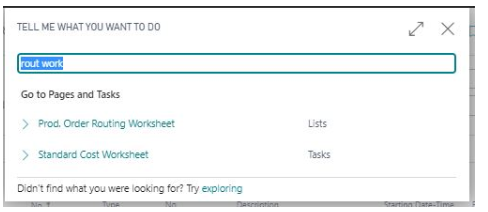

Tell Me can give you access to this Worksheet "Prod. Order Routing Worksheet".

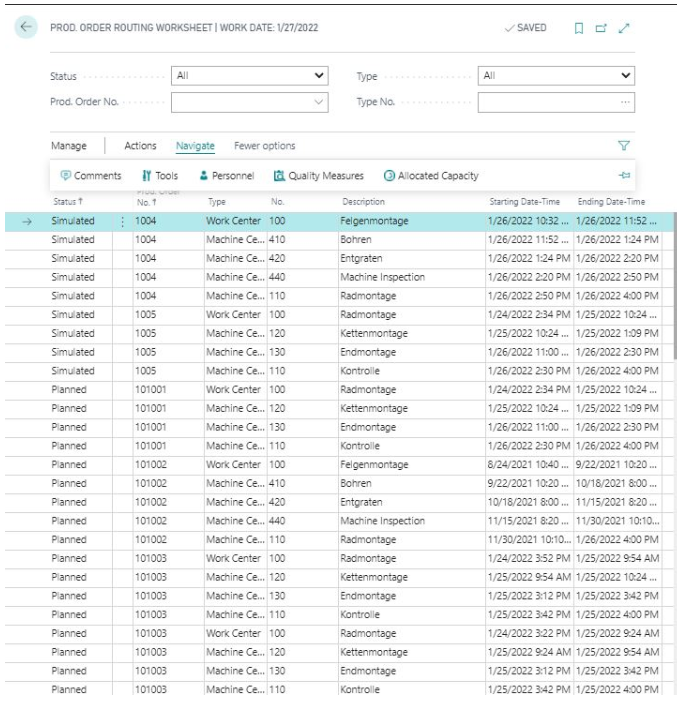

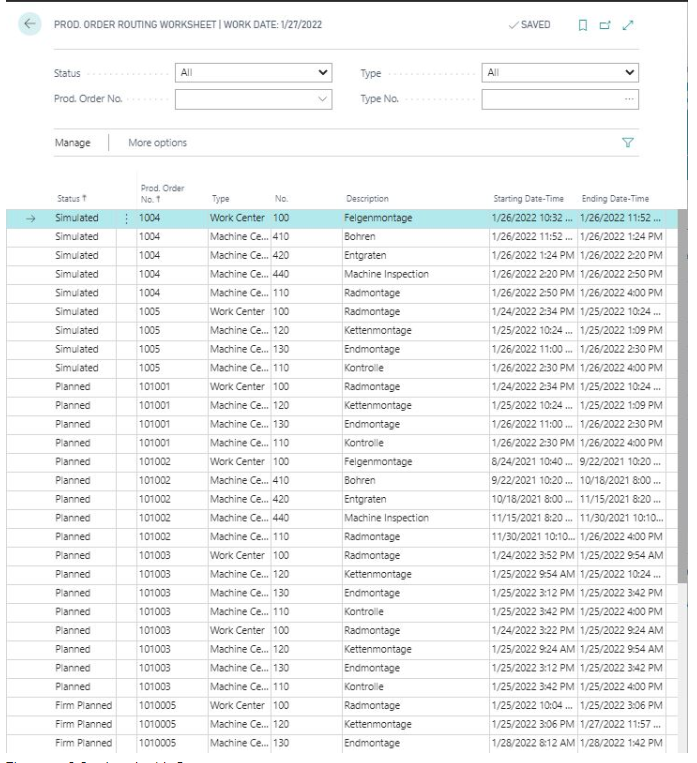

The Page "Prod. Order Routing Worksheet":
There are 3 Sections in this Page: - Filter - Manage, Action, Navigate - Lines
The Page is not Editable.
Die Filter Area defines some usefull Filterfields: - Status (any Status: Simulated, Planned, Firm Planned, Released, Finished) - Prod. Order No. (from existing List) - Type (Work Center or Machine Center) - No. (Work Center No. or Machine Center No., depending on the Type)

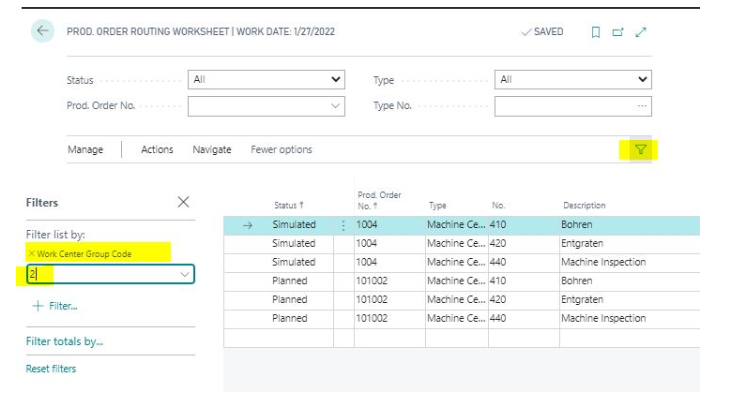

With the Click on the Filter Symbol you can select from any field from the Production Order Line:
With Navigate you can show the connected Data for Comments, Personell, Tools, Quality Measures and Allocated Capacities.
